Application Note 1165

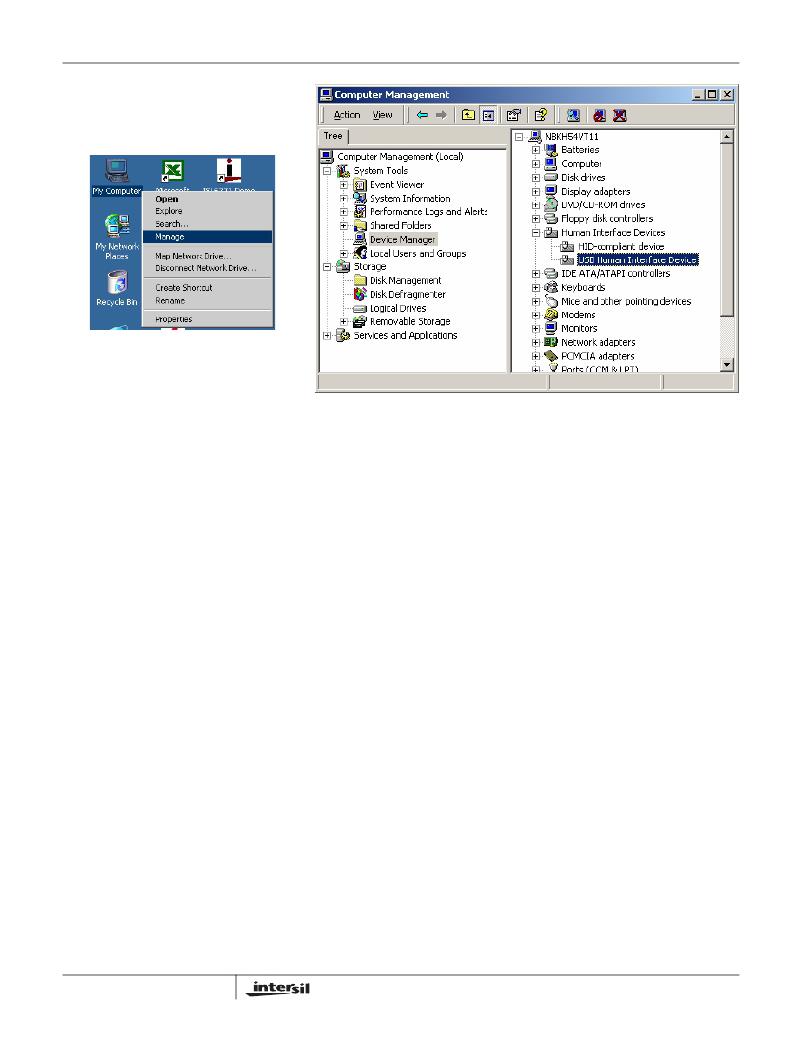

FIGURE 16. SCREEN SHOT OF WHEN RIGHT-
CLICKING THE MY COMPUTER
ICON ON THE DESKTOP
FIGURE 17. SCREEN SHOT OF THE COMPUTER MANAGEMENT FOLDER
Summary
The ISL6296 Evaluation Kit provides a convenient platform
for users to evaluate the ISL6296. The Authentication Tab
demonstrates the authentication process and provides a
powerful FlexiHash? calculator. The Register Access tab
allows the user the read from or write to the memories easily.
The XSD Access tab provides the tool for evaluating every
aspect of the ISL6296. The Tool Box and the Configuration
tabs provides other tools such as changing the XSD bus
speed or adjust the XSD bus voltage. Most tools, except for
the XSD access tool, addresses to device ‘0’. Users need to
change the device address to ‘0’ with the XSD Access tool, if
the original address is not ‘0’. Using an oscilloscope, one
can always monitor the activity on the XSD bus.
9
Appendix A
Steps to confirm the Interface Board in the OS after being
inserted to the USB port:
1. Right click the “My Computer” icon in the desktop window
and select “Manage,” as shown in Figure 16.
2. Select the Device Manager and the Human Interface
Devices folder will leads to the window in Figure 17.
3. Double-click on the USB Human Interface Device, then
Figure 18 will appear.
In Figure 18, one can find “Location: Evaluation Kit
ISL6296...”. This is the confirmation that the interface board
is properly recognized by the operating system.
The figures are captured in the Win2000 and are very similar
in other versions of Microsoft Windows Operating Systems.
AN1165.1
July 14, 2009
